RCGF Stinger 30cc TWIN
Smooth operation — Smaller size
RCGF high end Stinger 30cc twin cylinder engines are ready, you can get more smooth fly experience. It is small, powerful and easy starting,It is your very good choice for small size twin cylinder engine
Parameter
| Type | 2 cycle piston valve type gasoline engine for airplane |
|---|---|
| Displacement (cc) | 30cc (1.83 cu in) |
| Bore x Stroke (mm) | 1.26 in(32mm) x 0.77 in (19.6mm) |
| Recommended props | 18×8, 18×10, 19×8 & 20×8 |
| Maximum Output | 3.7HP /7500rmp |
| Power supply | 7.4V-14V |
- Carburetor : Walbro
- Ignition : Stinger DC-CDI (Computer Controlled auto advance, electronic ignition system)
- SPARK PLUG: M8(1/4-32)
- Requires: Gasoline, 2-cycle oil, ignition battery & propeller
- speed rang : 1500-8500rpm
- Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 32:1 for real oil, or 40:1 for synthetic oil)
- Lubrication Oil : High quality fully synthetic 2 cylinder oil such as Motul 800 2T 100% synthetic racing motro oil , Red line two-stroke racing motor oil , Stihl Ultra high performance 2 cycle fully synthetic engine oil etc .
- Break in Propeller : 18X8 (Standard Two leafs prop)
- Cooling System : Air Cooled

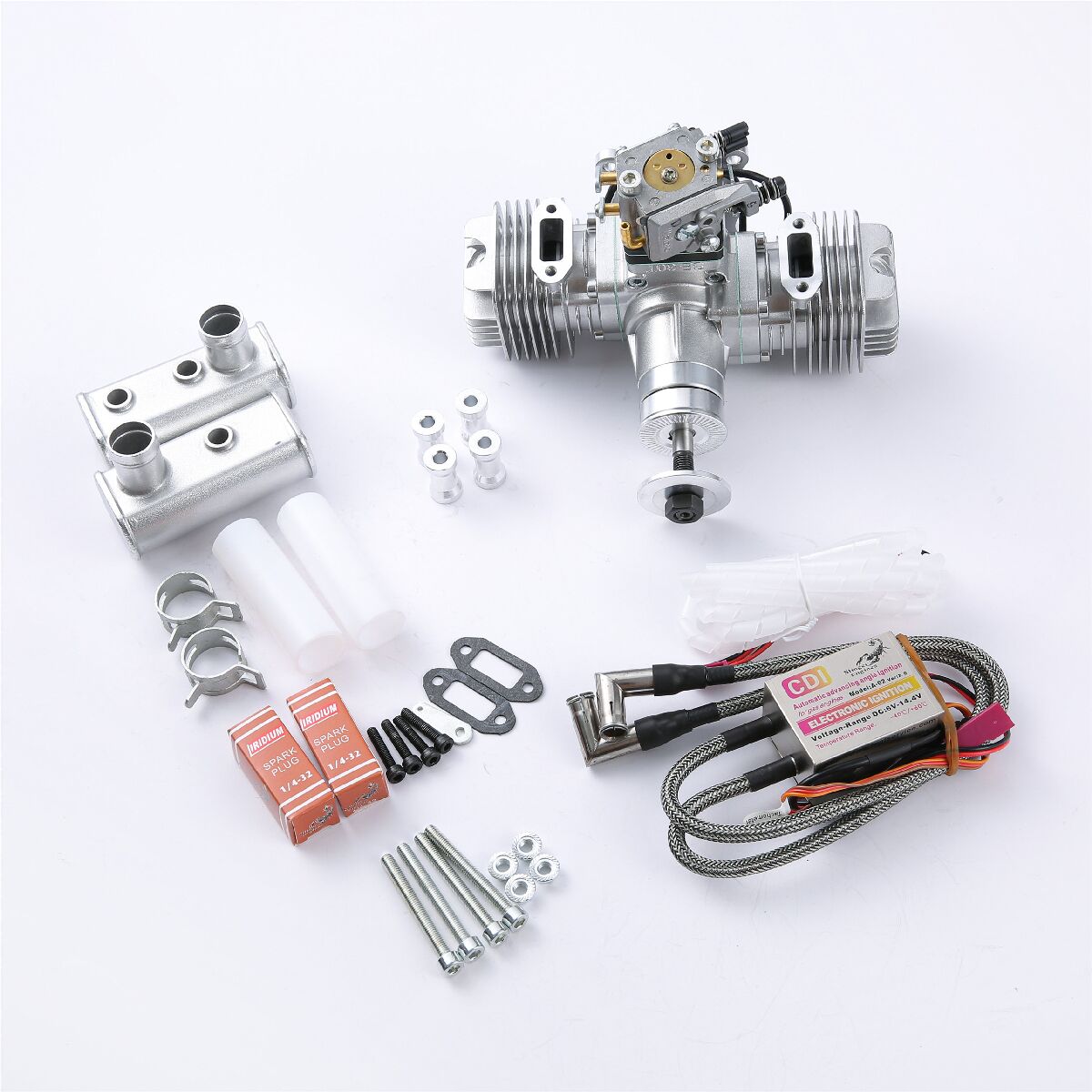

- RCGF Stinger Engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.
- Engine: 2.03 lb (923g)
- 2XMuffler: 2.71 oz (77 g)
- Ignition Module: 5.1 oz (145 g)
- Total: Weight: 2.53 lb (1145 g)
- Ignition Battery: 7.4V-14VNiCd or NiMH, 7.4V LiFe or 2S LiPo pack ( DO NOT use BEC, iBEC or uBEC)
- Gasoline/Oil Mix: (recommended : 32:1 for real oil, or 40:1 for synthetic oil)
- Replacement Spark Plug: M8 1/4-32 or equivalent
- Idle Speed: 1600 rpm/min
Awesome engines and many more to come
Packaged very good. I couldn’t get the muffler bolts in so I had the correct metric tap and I ran the tap in. Mufflers are now installed. Looks good. Have not started it yet.
It was a successful purchase.
Thank you
Mounted right up and started easily, only ran about 6 oz of fuel so far as it’s winter here.
It’s in a yak54 mk2. It looks and runs great. Nice job mile high.
